Well Pump Repair & Replacement in Harrisonburg, VA
When your private well pump stops pumping water or your pressure tank clicks rapidly, your household loses all running water. Héctor Plumbing Solution delivers fast, dependable emergency well pump repair, deep-well submersible pump replacement, and pressure tank installations throughout Harrisonburg and Rockingham County using commercial-grade Franklin Electric, Goulds, and Grundfos systems.
Well Pump Services: 5-Minute Crisis Containment Protocol
If water is actively leaking, gushing, or sewage is backing up into your basement or tubs, follow these immediate safety steps before our service truck arrives:
Emergency Well Pump & Water Pressure System Services
A sudden loss of water pressure or a total absence of water from your faucets is a critical household emergency for rural Shenandoah Valley homeowners. Héctor Plumbing Solution provides comprehensive well water supply diagnostics and repairs. Whether your system uses a deep-well submersible pump sitting hundreds of feet down in limestone bedrock or an above-ground jet pump, we arrive with fully equipped trucks carrying replacement pressure switches, control boxes, heavy-duty pressure tanks, and submersible pump assemblies.
- 24/7 priority emergency response for complete 'no water' private well failures
- Deep-well submersible pump replacement (1/2 HP, 3/4 HP, 1 HP, and 1.5 HP units)
- Pre-pressurized diaphragm and bladder pressure tank installation (Amtrol Well-X-Trol)
- Square D electro-mechanical pressure switch replacement and calibration (30/50 and 40/60 PSI)
- Submersible pump control box diagnostics (start capacitors, run capacitors, and relays)
- Pitless adapter replacement, brass check valves, and sanitary well cap sealing
Rockingham County Well Depth & Common Failure Causes
Private groundwater wells in Rockingham and Augusta Counties encounter distinct geological challenges. Driven deep into fractured karst limestone formations, residential wells often range from 150 to over 400 feet deep. Over years of operation, mineral scaling from hard water coats pump impellers, electrical lightning surges damage control boxes, and rubber bladders inside pressure tanks rupture. When a pressure tank becomes waterlogged, the pump short-cycles on and off every time a faucet opens, rapidly overheating the motor until it burns out.
- Complete loss of water pressure with no water flowing from any fixture in the home
- Well pump rapidly clicking on and off (short-cycling) every few seconds while water is running
- Faucets spitting bursts of air accompanied by cloudy, sediment-heavy water
- Circuit breaker for the well pump tripping repeatedly in the main electrical panel
- Water pressure surging and fading dramatically during showers or laundry cycles
Need Fast, Professional Well Pump Services in Harrisonburg?
Speak directly with Héctor for upfront flat-rate pricing and rapid mobile dispatch across Harrisonburg and Rockingham County.
Call Héctor: (512) 988-5119Our 5-Step Well Pump Diagnostic & Repair Process
Accurately diagnosing a private well system requires systematic electrical testing before pulling hundreds of feet of pipe. Héctor Plumbing Solution executes a rigorous five-step diagnostic protocol.
- Step 1: Electrical Voltage & Amperage Diagnostics — We test incoming power, control box capacitors, and motor winding resistance (measuring ohms from above ground) to isolate electrical versus mechanical failure.

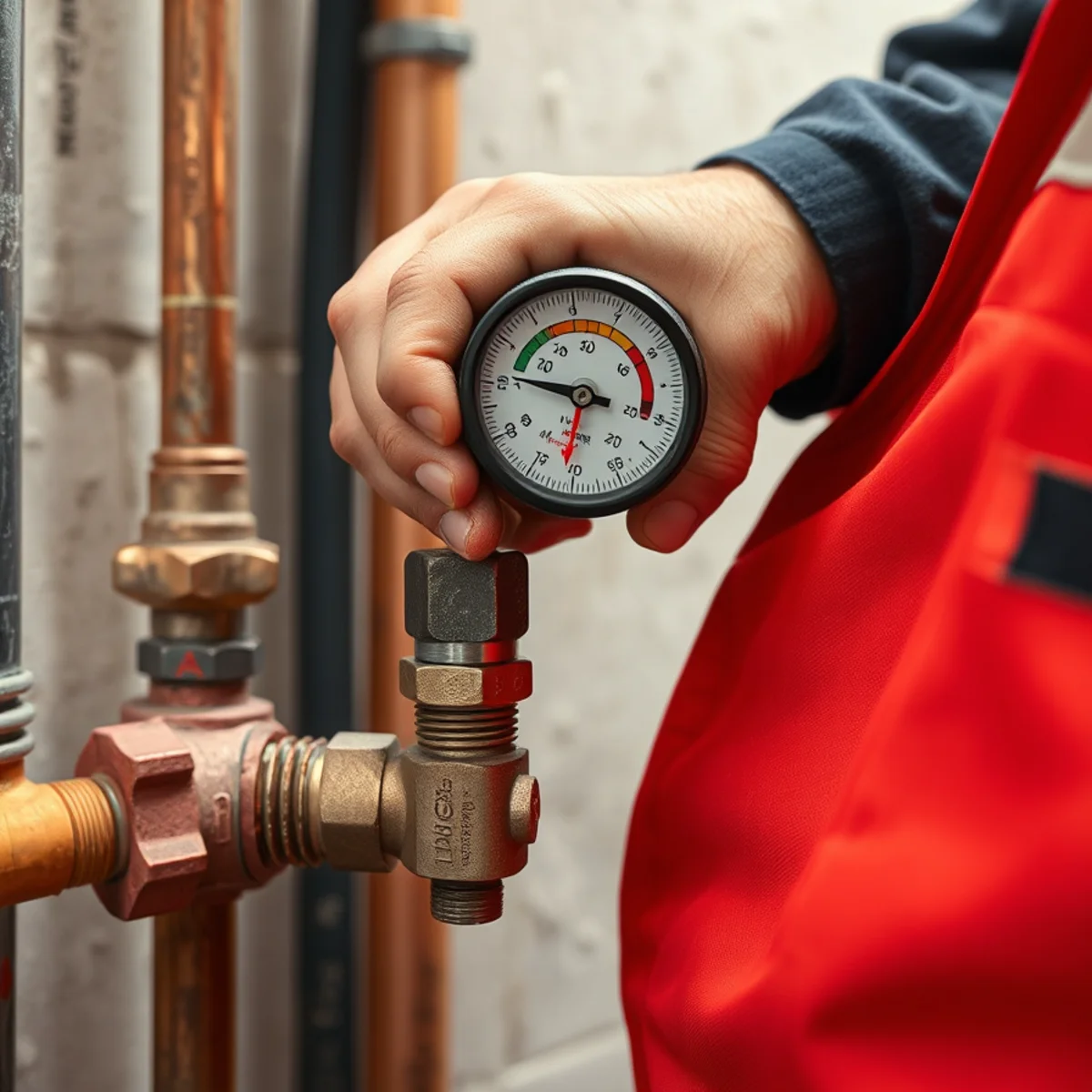

- Step 2: Pressure Switch & Tank Bladder Evaluation — We inspect the electro-mechanical switch contacts for pitting and test the pressure tank's pre-charge air pressure with a digital gauge.
- Step 3: Drop Pipe Extraction & Submersible Pump Inspection — If motor windings are open or grounded, we safely extract the drop pipe and submersible pump using specialized pipe-pulling equipment.

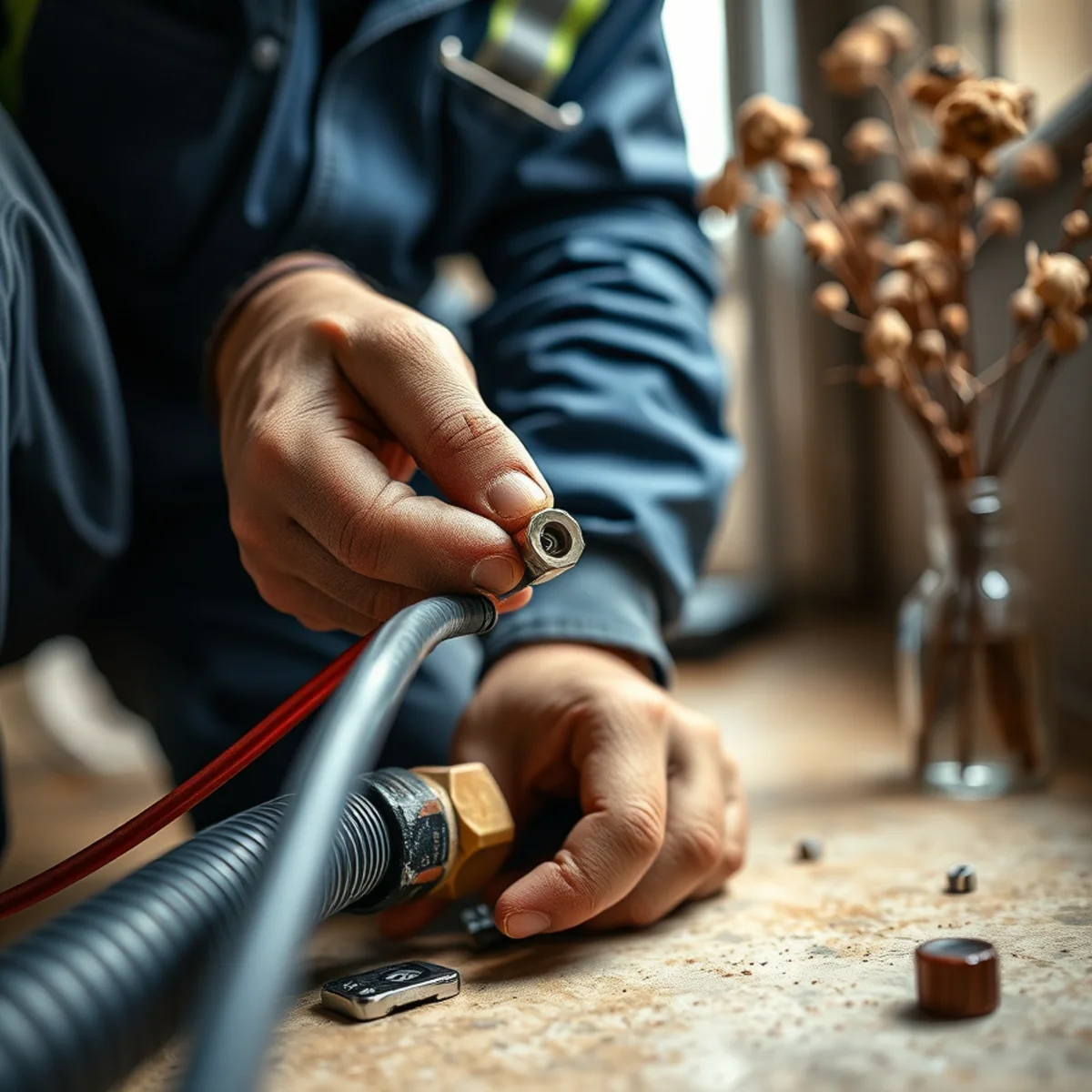

- Step 4: Heavy-Duty Pump Installation & Waterproof Splicing — We install a new stainless steel Franklin Electric or Goulds pump, make submersible waterproof heat-shrink splices, and replace check valves.
- Step 5: System Re-Pressurization & Flow Verification — We sanitize the well casing, calibrate switch differential cut-in and cut-out pressures, and verify steady, high-volume flow at household taps.
Harrisonburg Well Pump Cost Factors & Pricing
The cost to repair or replace a well pump in Harrisonburg and Rockingham County depends on well depth, pump horsepower, drop pipe material (polyethylene vs rigid Schedule 80 PVC), and whether the failure is surface-level or deep underground. In the Shenandoah Valley, surface electrical repairs (pressure switches, control boxes, or capacitor swaps) typically range from $180 to $350. Replacing a failed pressure tank ranges between $750 and $1,400. Complete deep-well submersible pump replacements range from $1,800 to $3,800 depending on depth and equipment. Héctor provides transparent upfront flat-rate pricing.
- Well Depth and Setting: Pulling and replacing a pump set at 350 feet requires more heavy rigging and heavier wire than a shallow 100-foot well.
- Horsepower and Volume: High-yield residential and farm pumps (1 HP to 1.5 HP) carry higher motor costs than smaller 1/2 HP domestic units.
- Pressure Tank Size: Sizing a heavy-gauge Amtrol Well-X-Trol tank to match pump run-time specifications prevents premature motor wear.
- Drop Pipe Condition: Replacing brittle galvanized drop pipe with flexible, corrosion-proof 160+ PSI poly pipe ensures decades of dependability.
VDH Well Regulations, Electrical Codes & Virginia DPOR
Private well water systems combine high-voltage 240V electricity with pressurized drinking water. Under Virginia Department of Health (VDH) Private Well Regulations (12 VAC 5-630) and the Virginia Uniform Statewide Building Code (USBC), all well work must protect the aquifer from surface contamination. Key requirements include installing vermin-proof sanitary well caps at least 12 inches above grade, maintaining electrical grounding, and installing ASME-rated pressure relief valves. All work is executed under Virginia DPOR Master Plumber licensure.
- Compliance with Virginia Department of Health (VDH) private well sanitary regulations
- Virginia Uniform Statewide Building Code (USBC) electrical and plumbing safety compliance

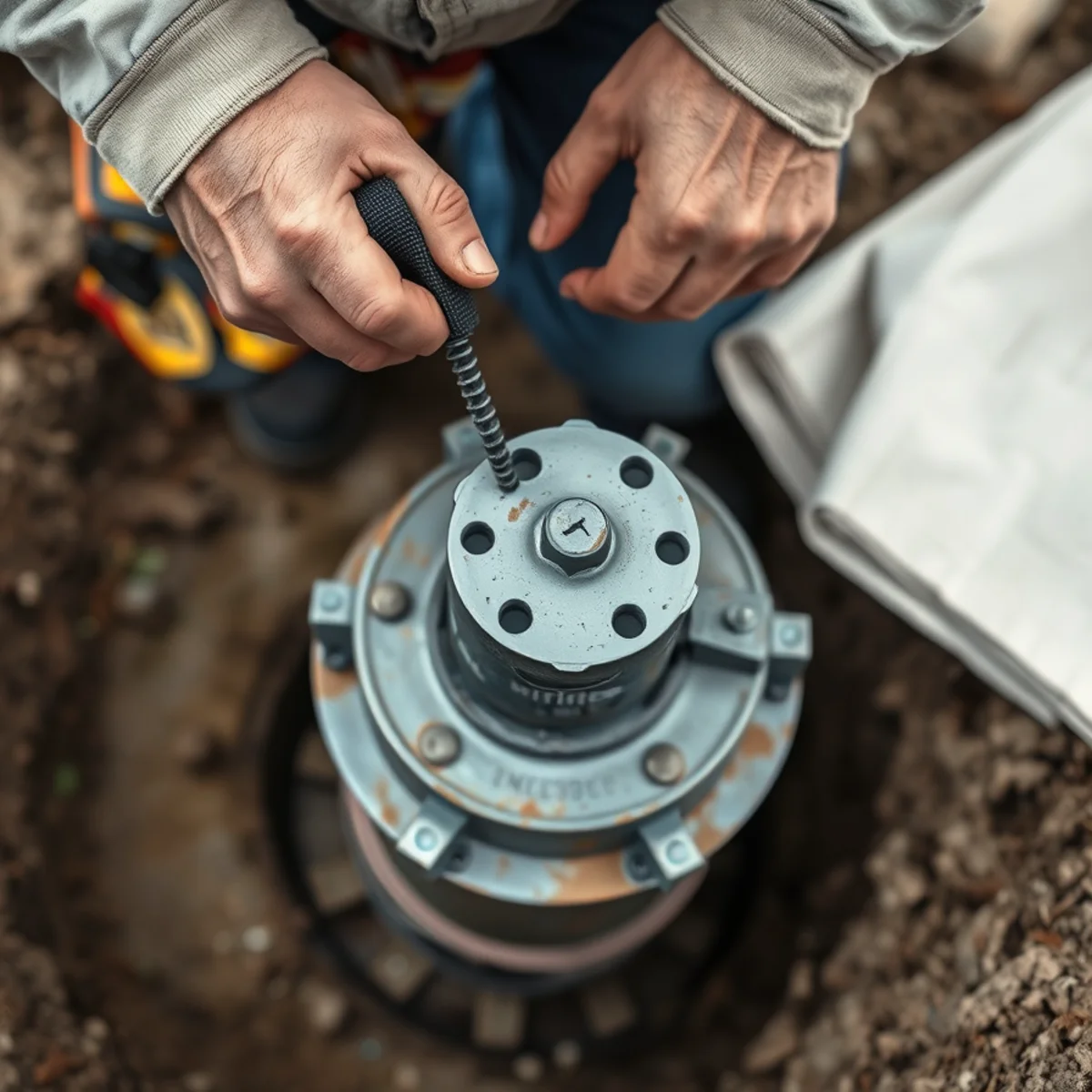

- Installation of vermin-proof sanitary well head seals preventing surface insect contamination
- Consumer protection backed by licensed, insured Virginia plumbing contractor accountability
Why Harrisonburg Chooses Héctor for Well Pump Services
When your well pump fails, you cannot wait days for an out-of-town contractor. Héctor Plumbing Solution is an independent, owner-operated plumbing company based on West Rock Street in Harrisonburg. Héctor personally diagnoses your well system, carries commercial-grade Franklin Electric, Goulds, and Amtrol components, and provides 100% bilingual English and Spanish communication.
- Direct owner-operator diagnosis and repairs with verified 4.5★ Google rating
- Commercial-grade stainless steel submersible pumps and heavy-duty pressure tanks
- Accurate electrical diagnostic testing—we never pull a pump unless truly necessary
- Rapid emergency response across Harrisonburg, Bridgewater, Dayton, and Rockingham County
Related Plumbing Services
Areas We Serve for Well Pump Services
Trusted by Homeowners Across the Shenandoah Valley
Frequently Asked Questions: Well Pump Services
How do I know if my well pump or my pressure tank is bad?
If your pump clicks on and off rapidly every time you turn on a faucet, the pressure tank bladder is waterlogged and has failed. If your home has zero water, the breaker trips immediately, or the pressure switch clicks but the pump does not run, the problem is typically an electrical control box or a burned-out submersible pump motor.
How long does a submersible well pump typically last in Rockingham County?
A high-quality submersible well pump typically lasts 10 to 15 years in Shenandoah Valley groundwater. Factors that shorten pump lifespan include hard limestone scale buildup, lightning electrical surges, and frequent short-cycling caused by a failed pressure tank.
What should I do immediately if I have no water from my well?
First, check your main electrical panel to see if the double-pole well pump breaker has tripped. If it has, reset it once; if it trips again immediately, leave it off to prevent electrical fire. Then inspect your pressure gauge near the pressure tank. If the gauge reads 0 PSI, call Héctor Plumbing Solution at (512) 988-5119 for emergency service.
What is the proper air pressure for a well pressure tank?
The air pre-charge pressure inside a bladder pressure tank should be set exactly 2 PSI below the cut-in pressure of your pressure switch when the tank is completely drained of water. For a standard 40/60 PSI switch, the tank pre-charge should be 38 PSI; for a 30/50 PSI switch, it should be 28 PSI.
Can lightning or power surges damage a well pump in the Valley?
Yes. Rural power lines in the Valley are prone to electrical surges during summer thunderstorms. A high-voltage surge can burn out the pump control box capacitor, melt pressure switch contacts, or short-circuit motor windings deep underground. We install heavy-duty surge protectors to safeguard your equipment.
